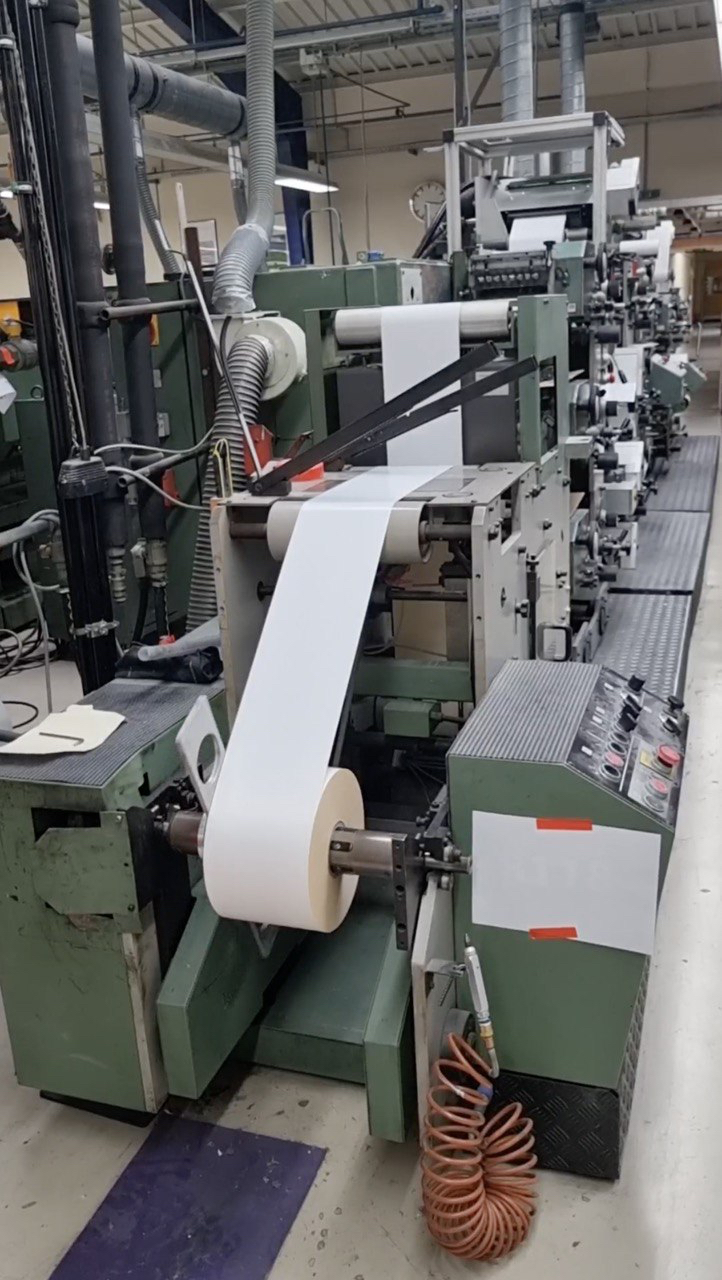

Gallus R 160 B

Technical data:



Maximum print width:	165 mm
Web width:	min. 80 mm, max. 181 mm
Print length:	min. 82.55 mm, max. 457.2 mm



Components of the machine:

• Corona treatment
• Delam-/Relam unit
• 3x Letterpress units
• 1x Hot foil stamping unit
• 3x Letterpress units
• Turning cross
• Flat die cutter
• Lamination unit
• Rotary die cutter / Gap-Master with magnetic die cylinder: Z96, Z100, Z102, Z104, Z108, Z112, Z120
• Printing cylinders: 6x Z88, 5x Z90, 6x Z96, 1x Z98, 6x Z100, 6x Z104, 6x Z106, 6x Z108, 6x Z112, 6x Z114, 6x Z120, 6x Z132, 6x Z138
•
