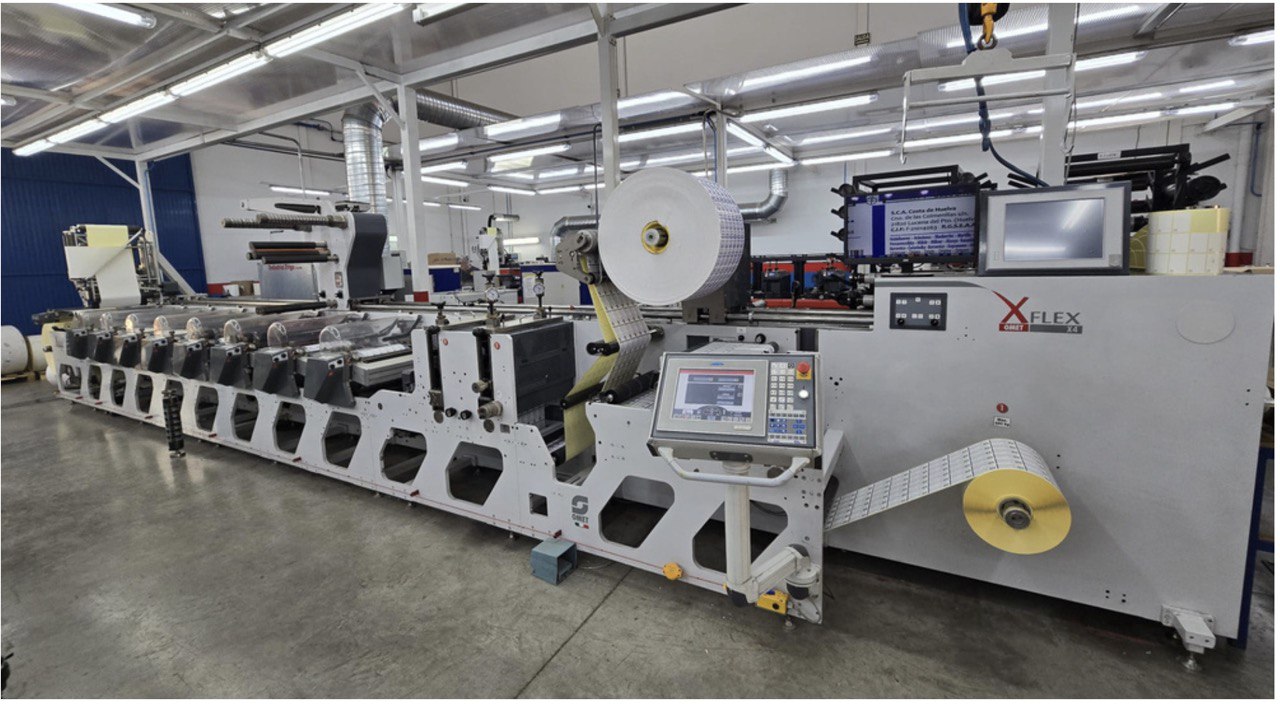

OMET XFLEX X4 370

Technical data

Max mechanical speed: 190 mpm (630fpm)

Max. web width: 370 mm (14"4/8)

Flexo Printing repeat range: from 5,5" to 24"

Maximum flexo printing width: 360 mm (14"1/8)

Maximum die cutting width: 360 mm (14"1/8)

Die cutting repeat range: from 8" to 24" (suggested form 12")

Substrate thickness range: min 12 micron (0,5 mil) only PET - max. 250 gr/m²

Web tension: max. 30 kg

Drivers and motors: Emerson - Control Techniques

Standard machine voltage: 400 V AC three phase + 50 Hz + Earth

Regulations: "CE" Mark



• Automatic tension unwinder, for rolls up to 1000 mm(40") diameter,with integrated roll pickup from the floor
• Servo driven infeed section,with automatic web tension control
• Web guide
