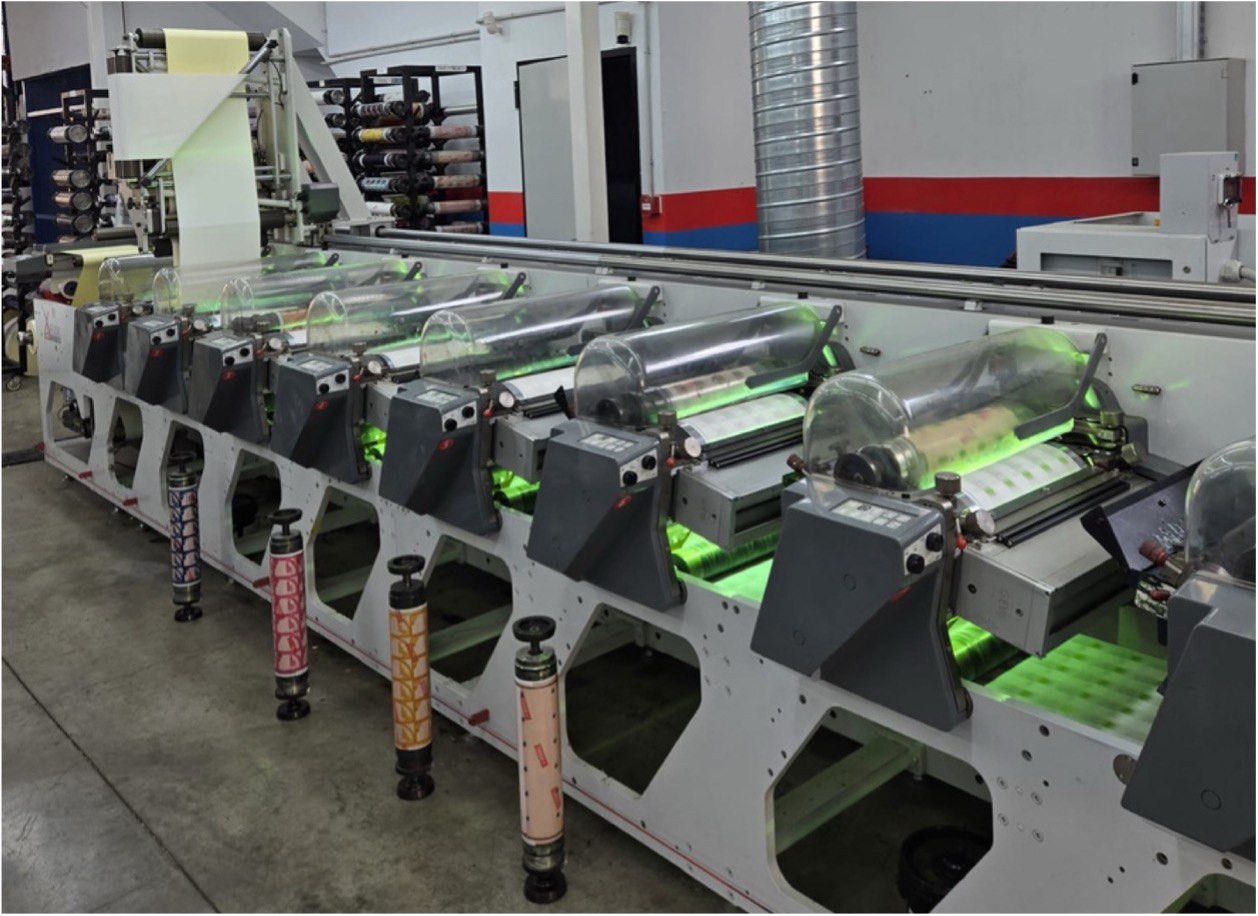

OMET XFLEX X4 370

Technical data

Max mechanical speed: 190 mpm (630fpm)

Max. web width: 370 mm (14"4/8)

Flexo Printing repeat range: from 5,5" to 24"

Maximum flexo printing width: 360 mm (14"1/8)

Maximum die cutting width: 360 mm (14"1/8)

Die cutting repeat range: from 8" to 24" (suggested form 12")

Substrate thickness range: min 12 micron (0,5 mil) only PET - max. 250 gr/m²

Standard machine voltage: 400 V AC three phase + 50 Hz + Earth



• Automatic tension unwinder, for rolls up to 1000 mm(40") diameter,with integrated roll pick up from the floor
• Servo driven infeed section,with automatic web tension control
• Web guide
• DUAL SERVO flexo printing stations with chilled impression cylinder for straight through short web path
• Automatic pre-register 360°
• Outfeed and rewinding section with 1 shaft for 760 mm (30") maximum reel outer diameter standard, 2nd rewinding shaft optional
• Rock'n'Roll "Dual Function" stripping station, 760 mm (30") maximum waste roll diameter, complete with servo motor
• Longitudinal slitting system, scissorcut type, complete with 3 blades assembly,
• Operator Interface, through touch screen panel
• Videocamera
• Rail system for movable finishing options
• Print on print automatic intelligent register system VISION, for both cross axis and machine axis, without any operator interference on the press and regardless his skills (STANDARD)
