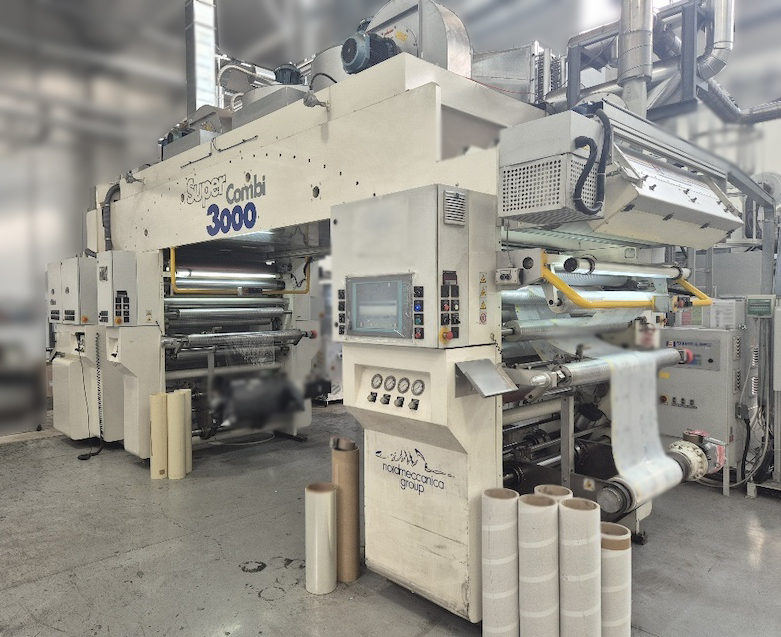

NORDMECCANICA SUPER COMBI 3000

for solvent-based, solventless, and water-based lamination processes

  • Web width: 1300 mm
  • Max mechanical speed: 400 m/min (depending on materials and process)
  • Substrate types: Film, foil, paper, and combinations thereof

Main Components and Features



  • Automatic web tension control across all unwinds and rewinds
  • Motorized adjustment for nip pressure and web alignment
  • Touchscreen HMI for process control and recipe management
  • Modular design for easy access and maintenance
  • Web inspection and defect detection (if installed)
  • Corona Treatment Unit
    • Ensures surface energy of substrates is optimized for adhesive anchorage
    • Integrated into the unwinding section
    • Adjustable power output based on substrate requirements
  • Nordmeccanica Solventless Mixing Unit Continuous, inline mixing of two-component adhesive system
    • Equipped with:
      • Precision gear pumps for both A and B components
      • Automatic ratio control and monitoring
      • Pumps for continuous filling to ensure uninterrupted production
      • Easy-access design for cleaning and maintenance
    • Drying Tunnel
      • Equipped with 2 thermal oil heating batteries
        • Provide stable and efficient heat transfer
        • Maintain consistent tunnel temperature, essential for proper adhesive drying
      • Integrated with 2 modulating valves
        • Automatically adjust the thermal oil flow
        • Enable fine control of tunnel temperature for different lamination applications
      • LEL (Lower Explosive Limit) Monitoring System Zellweger LEL sensor. Continuously monitors solvent vapor concentration

Details

RefNr:

Hersteller: NORDMECCANICA

Modell: SUPER COMBI 3000

Baujahr: 2013
