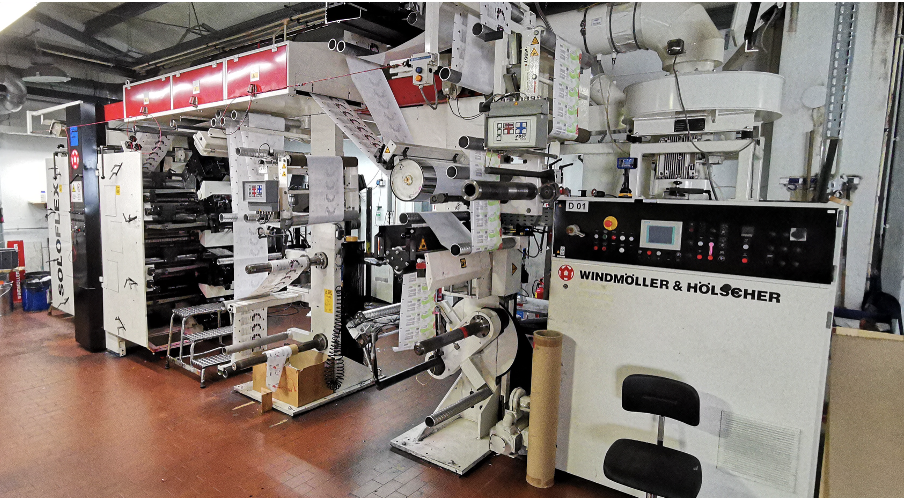

Windmöller & Hölscher Soloflex 8f

Technical data and equipment:

• 8 printing units

Material width: 620 mm”

Printing width: 600 mm

Printing lengths: 250 – 520 mm

Materials:

• PA: 20 – 60 µm
• LDPE: 20 – 150 µm
• HDPE, OPP and similar materials: 12 – 80 µm, max. 120 µm
• Laminated films
• Paper: 25 – 120 g/m²



Mechanical machine speed: max. 200 m/min (depending on material)

Main equipment:

• impression cylinder, new nickel-plasma coating
• Temperature control unit for impression cylinder
• Non-stop unwinder with web tension measuring and control system, including drop-splice unit, roll Ø 600 mm, core ID Ø 76 mm
• Nip roller before the 1st printing unit
• 8 doctor-blade printing units
• Speed Assist
• Drive parts from the printing unit to the bridge
• Intercolor dryers
• Web guiding before printing
• Bridge with bridge dryer
• Web video inspection system
• Edge guiding before rewinding with 3 slitting discs and suction
• Non-stop rewinder with pneumatic cutting device and web tension measuring and control system, roll Ø 600 mm, core ID Ø 76 mm
• 8 chamber doctor blades and 8 additional doctor blades, coated
• 8 electric pumps, new
• 8 ink containers, 10 L each, including hose connections, new
• 8 ink catch trays and 4 additional trays
• 1 service trolley for anilox roller and sleeve handling
• 1 service trolley for chamber doctor blades and ink trays
• 8 printing sleeve cylinders, new, print length 320 mm, make: Rotec Conductive Blue Light
• 8 format gears, new, print length 280 mm
• 8 ceramic anilox roller sleeves, new. The base bodies were ordered from Apex. Company Wareg will procure the required sleeve type directly from Apex; only in the case of supplying UniFlex rollers will Wareg bear the additional costs.
• Compliance with ATEX regulations
• New Siemens S7 control system
