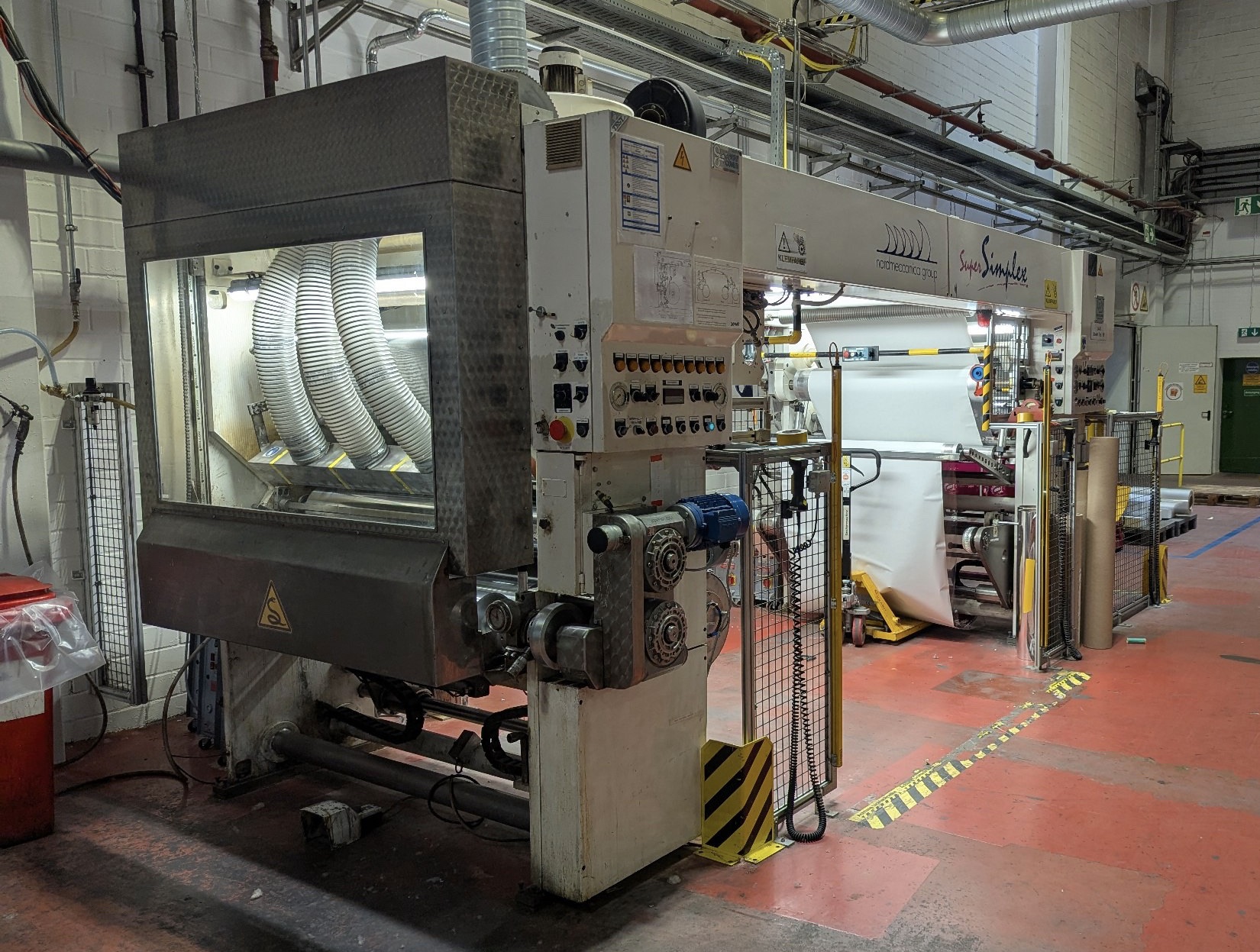

NORDMECCANICA SL 1300

Technical data:





Web width:	1,300 mm
Lamination type:	Duplex (two-ply)
Adhesive system:	2-component, solventless
Mechanical speed:	300 m/min
Unwind diameter:	800 mm (shaftless, single-position)
Rewind diameter:	800 mm (shaftless, single-position)
Core diameter:	3"
Web direction control:	Integrated web guiding system
Corona treatment:	1–2 corona stations

Heating:	Electric heating with temperature regulation system
Coating rollers:	Coating head with staggered application rollers for solventless adhesive, configured for accurate laydown control





Main Features:

• Shaftless single unwind station
• Shaftless single rewind station
• Duplex configuration for solventless adhesive lamination
• Corona treater for surface activation
• Electric heating for coating unit
• Temperature control system
• Web guide for precise alignment
• Coating head with multiple rollers for flexible adhesive laydown
• Two-component solventless adhesive system (external mixer may be required)
• Solid steel frame for vibration-free operation
• Easy access for maintenance and cleaning
• Operator-friendly controls
