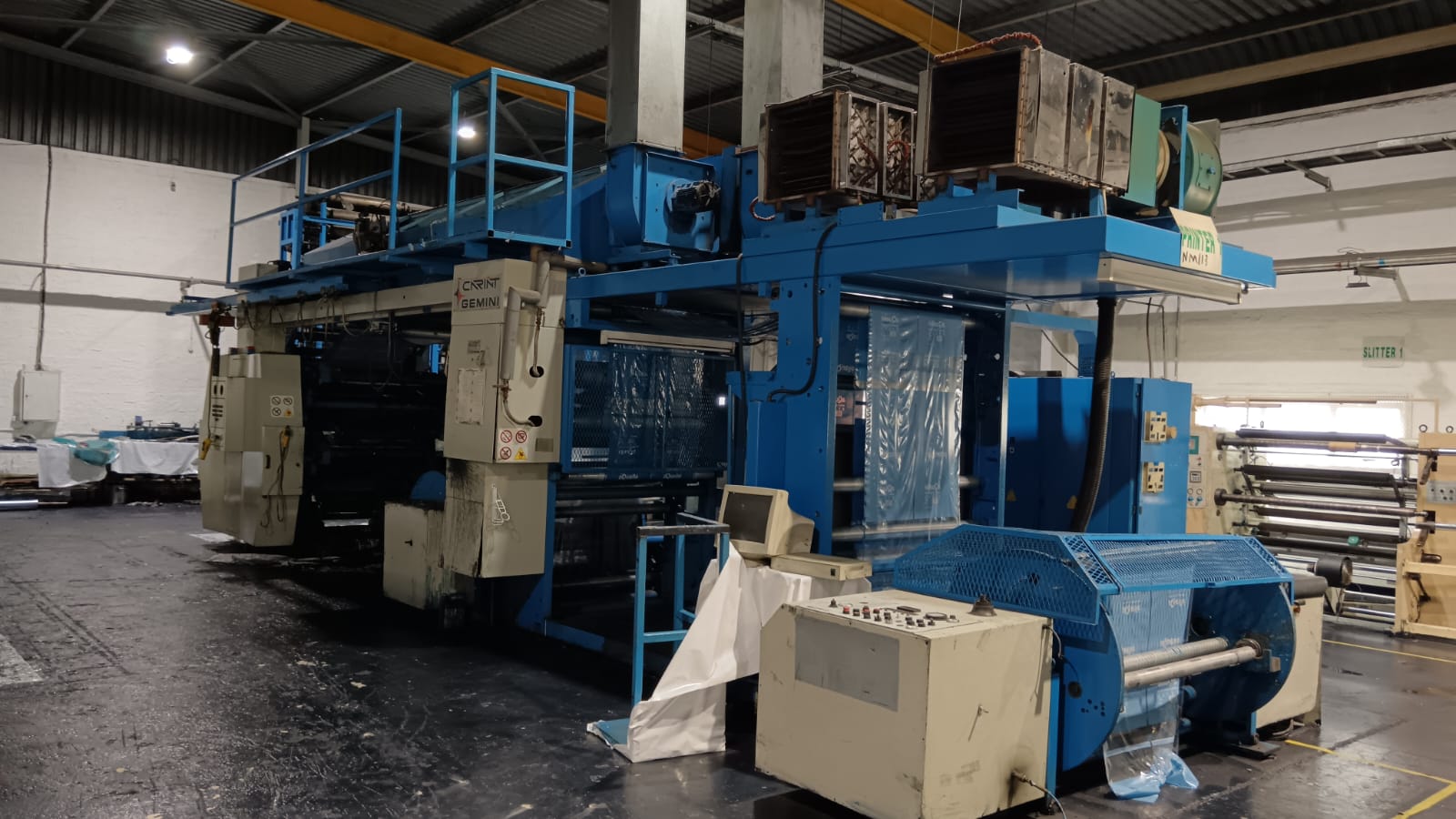

Carint 6-Colour CI Flexographic Printing Press

The Carint central impression flexographic printing press is designed for printing on PE, PP, OPP, PET films and paper. The machine is equipped with 6 printing colours (6+0), geared drive and is suitable for a wide range of flexible packaging applications.

Material width:          1,280 mm

Printing width:           1,250 mm

Print repeat:               Min: 360 mm /  Max: 1,040 mm

Mechanical speed:    Up to 300 m/min

UNWINDER AND REWINDER

The machine is equipped with a non-stop turret unwinder and non-stop turret rewinder. Maximum reel diameter :  800 mm.

Expanding shafts:  3"

DRYING SYSTEM

Electrical drying system.
INK SUPPLY
6 pneumatic ink pumps.

ACCESSORIES
• Motorized longitudinal register
• Chamber doctor blade system
• 8 Anilox cylinders
• 6 Plate cylinders
• Video inspection system
• Web guides
• Banana rollers
• Plate cylinder lifting hoist
• 2 electrical hoists
• 2 cylinder storage racks with 6 cylinders of various repeat sizes
