MACCHI 3-LAYERS / 2350mm

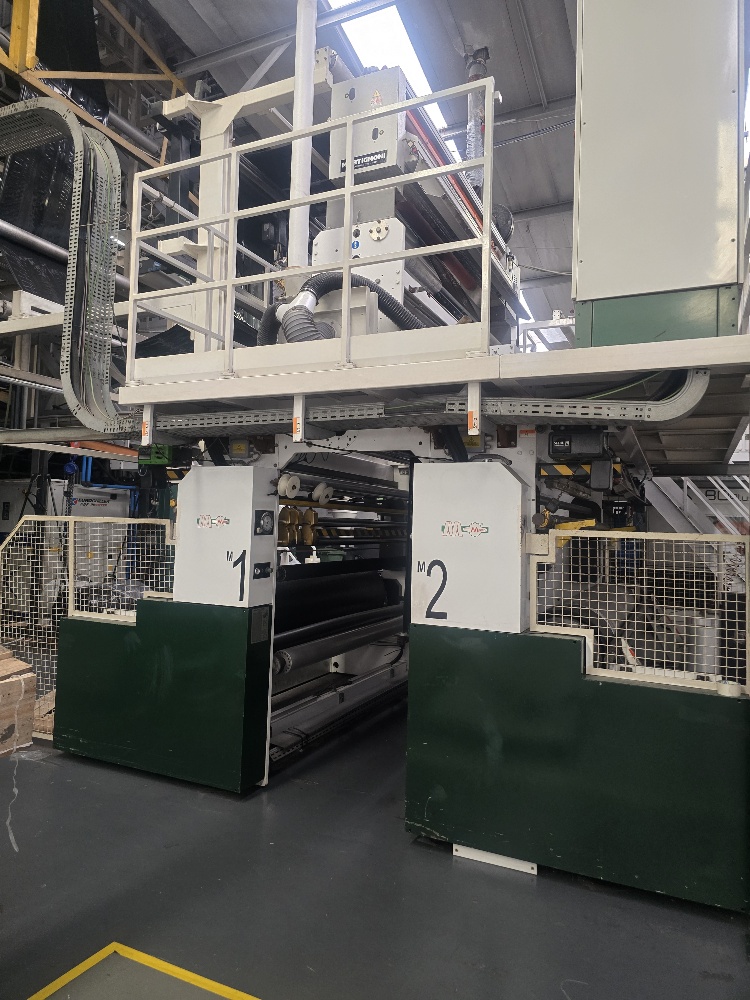

This Macchi 3-layer blown film co-extrusion line is designed for the production of high-quality polyethylene films with outputs of up to 800 kg/h. The line processes LDPE, LLDPE, MLDPE and HDPE and is suitable for manufacturing collation shrink film, gusseted shrouds, stretch hood film, tubing and sheeting
|
Materials to be processed:
|
LLDPE/LDPE/LLD/HDPE |
|
Extruders: |
65 mm + 80 mm + 65 mm Infrared heaters 3pcs plate filters
|
|
Head: |
3 Layer blown film Die head TE5303-IBC-350/500 Dies diameter 350 and 400 mm IBC
|
|
Die Gap:
|
1,8 mm
|
|
Output: |
Up to 800 kg/hour depending on material formulation
|
|
Air ring: |
Dual flow air ring carbon fibre
|
|
Take off:
|
Take off 2400 mm wide Oscillating nips Motorised side gusseting
|
|
Rewind:
|
Double winder, fully automatic back-to-back rewinder Winder, fully automatic roll change Reels diameter up to 800 mm Winding width 2350 mm
|
|
Accessories: |
Tower Web guide E&L Gravimetric weight control system Piovan/Doteco Components blander Shini Dosing units Doteco Automatic Thickness control Kundig K-Design Profile gauge control system Calibrating basket Corona-treater Martignoni Air shafts 8pcs |
Details
RefNr:
Hersteller: MACCHI
Modell: 3-LAYERS / 2350mm
Baujahr: 2012
