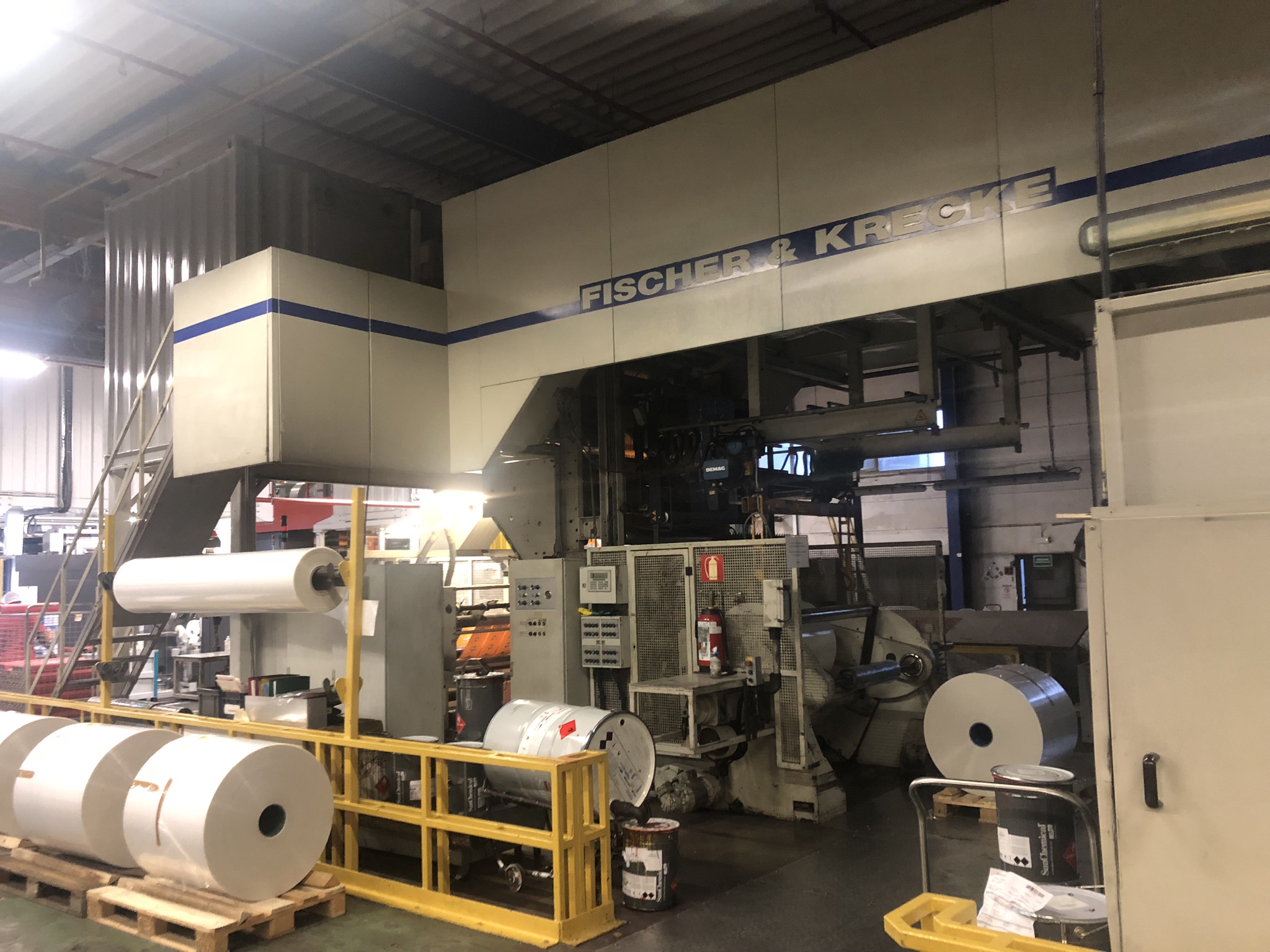

Fischer & Krecke 34 DF/8 CNC

Colors: 8

Gearless: No

Fast Sleeve change: No

4 motor cnc per printing deck: Yes

Computer supervision:Yes

Web width:1320

Print width:1300

Min print repeat: 380

Max print repeat:1100

Mech speed: 350m/min

working speed: up to 300m/min

Unwinding & winding: Turret FLYING SPLICE

Max reel diameter 1000

Drying: 2 zones , 4 fans 2 gas burners

Videocamera: Yes

Corona threatment:NO

Web guides: FIFE

Viscocity control Yes

Wash system : yes, F&K

Ceramic anilox + closed chambered doctor blade



1x 80 L/cm, 2x 200 L/cm, 2x 120 L/cm, 4x 200 L/cm , 2x 320 L/cm , 3x 400 L/cm



200 sleeves repeat between 390 mm and 1090 mm ( 8 for each following repeat x 390 , 400, 410 , 420 , 430 , 450 , 480 , 510 , 530 , 540 , 550, 630 , 660 , 670, 740 , 780 , 800 , 850 , 880 , 930 , 990 , 1030, 1050 , 1090 + 8 twinlock 740 mm + 8 twinlock 1030





Mandrels for sleeve s 6 x360 , 6x 400 , 6x 420 , 8 x 460 , 8x 530 , 6x 560 , 12 x 620 , 8x 780 , 8x 850 , 15 x 990 mm. Printing cylinders 8x 380 , 8x 390 , 12x 400 , 8x410 , 8x 450 , 6x 460 , 7x 470 , 4x 490 , 12x 500 , 8x 510 , 12x 530 , 8x 540 twinlock , 6x 560 , 8x 570 , 8x 580 , 8x 590 , 12x620 , 9x 640 , 12x 660 , 6x 670 , 6x 730 ,





Overall sizes: L=17m, W=5m, H=6m

Diameter of central drum: 2280mm
